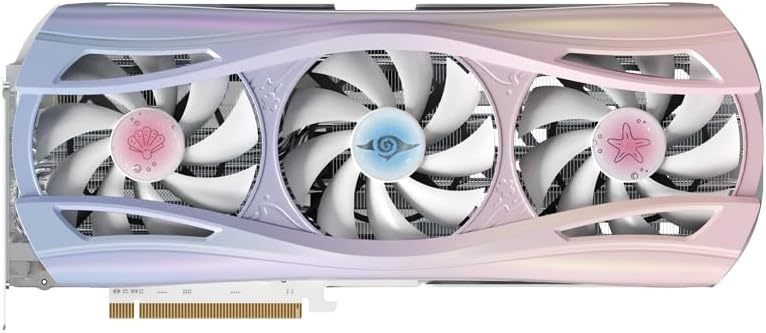

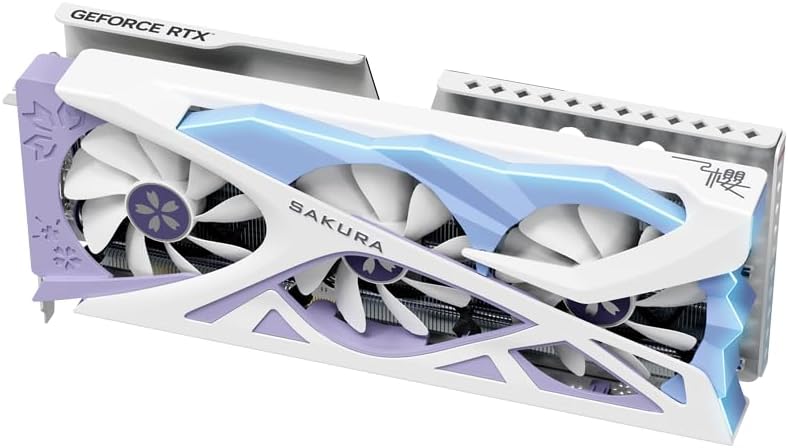

Yeston Sakura Atlantis Nvidia GeForce RTX 5070 Ti Graphics Card GDDR7 16G 256bit Gaming GPU

About this item

• Unified shader: 8960 Core frequency: 2295MHz/boost 2482MHz Video Memory Frequency: 1750MHz Video Memory Speed: 28Gbps Video Memory Capacity and Specifications: 16G/256bit/DDR7 3D features: DirectX 12/Ray Tracing/Tensor/G-Sync/DLSS4/REFLEX/BROADCAST/ANSEL/ VRREADY/Vulkan1.4/ RT APIs/ OpenGL 4.6/HDCP 2.3 OS feature: WIN10/WIN11/LINUX (64 bit) (minimum requirement) Heat sink: YFYT7A-Y (7 * 6mm composite heat pipe, 9.3cm * 1+9.7cm * 2 double ball fan, VC heat plate, top light strip supporting ARGB lighting) Synchronize) Lighting: The top (SAKURA) lettering light defaults to white breathing light mode (cannot be turned off)
• Maximum fan speed: 3000 Bus interface: PCI Express 5.0 x16 Output interface: HDMI (2.1b * 1)+DP (2.1b * 3) Maximum resolution: Using DP 2.1b interface and DSC technology, or HDMI 2.1b interface and DSC technology, it can support up to 4K 12 at 480Hz HDR display effect. Adopting DP 2.1b interface and DSC technology, it can support up to 8K 12 bit HDR display effect under 165Hz conditions. Adopting HDMI 2.1b interface and DSC technology, supporting up to 8K 12 bit HDR display effect under 120Hz conditions. Adopting dual DP 2.1b interface and DSC technology, the highest Supports 8K HDR display effect under 100Hz conditions
• Fan features: 6Pin, adjustable speed, display speed value, support start stop Multiple displays: 4 screens Using DP or HDMI interface, it can support 4 independent displays under 4K 165Hz conditions Using DP interface or HDMI interface, and with the support of DSC technology, it can support 2 independent displays under 4K 360Hz or 8K 100Hz conditions Sli (NVLINK)/Crossfire: Not supported Power supply design: 10 NVVDD+4 MSVDD+3 FBVDD External power supply: 16 pins Graphics card power/recommended power supply: approximately 300W/ATX 3.0 standard 750W or above Half height gear: not supported
• Accessories: 8PIN to 16PIN power cord (three 8pin ports to one 16PIN), cherry blossom cartoon sticker, 5v3 pin light synchronization wire white * 1, quality assurance Card * 1 interface dust plug (3DP/1HDMI) gold finger protective cover Graphics card size/weight: 328 * 138 * 68mm/1508g (excluding blocking) Maximum size of graphics card: 344 * 152 * 68mm (including spacer) Packaging size/weight: 430 * 225 * 113mm * 2051g
